If you’re researching commercial-grade indoor cameras, there’s a decent chance the Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera. (commercial type number NDV-5704-AL, product number F.01U.394.455) has already crossed your shortlist. It sits in an interesting spot in Bosch’s lineup — sharp enough resolution for detail-heavy environments, built-in infrared for after-hours coverage, and Bosch’s IVA Pro Buildings analytics baked in rather than sold as a pricey add-on.
This review works through what the camera actually offers based on Bosch’s published technical documentation, rather than marketing copy. Additionally, we’ll cover image quality, low-light behavior, analytics, networking, installation, and how it stacks up against other cameras in Bosch’s catalog — plus where it falls short, because no camera is perfect for every job.
Quick Comparison Table
| Feature | FLEXIDOME Indoor 5100i IR 8MP | FLEXIDOME 3100i (5MP) | DINION IP Starlight 7000 (1080p) |
|---|---|---|---|
| Resolution | 8 MP / 4K UHD | Up to 5 MP (QHD) | 1080p |
| Built-in IR | Yes | Yes (select variants) | No (external IR needed) |
| Video Analytics | IVA Pro Buildings (deep learning) | IVA Pro Buildings (deep learning) | Intelligent Video Analytics |
| Form Factor | Fixed dome | Compact dome | Box camera (separate lens) |
| Best For | Detail-critical indoor monitoring | Entry-level indoor coverage | Hybrid analog/IP migration |
Quick Rating Summary
| Category | Rating |
|---|---|
| Image Quality | 9/10 |
| Low-Light Performance | 8/10 |
| Build Quality | 8/10 |
| Analytics Features | 9/10 |
| Ease of Installation | 8/10 |
| Network Features | 9/10 |
| Value for Money | 7/10 |
| Overall Rating | 8.3/10 |
Why Trust This Review
This review is built entirely from verifiable sources:
- Bosch’s official FLEXIDOME 5100i technical datasheet, covering the shared camera platform (CPP14), sensor specifications, video performance, and IVA Pro analytics
- Bosch’s official product listing information for the FLEXIDOME indoor 5100i IR variant (NDV-5704-AL)
- Bosch’s published user manual for the FLEXIDOME indoor/outdoor 5100i and 5100i IR family
- Authorized Bosch reseller specification sheets, used to cross-check IR illumination range figures specific to the 8MP IR variant
- Direct comparison against other cameras in Bosch’s current catalog
A quick transparency note: Bosch periodically restructures its commerce URLs (the brand’s security division now operates partly under the KEENFINITY Group), so a couple of the original documentation links returned “page not found” during research. However, where that happened, we cross-referenced Bosch’s current official datasheet for the same camera platform and Bosch’s own retail listings, rather than relying on unverified third-party numbers. This is an independent review — it is not sponsored by Bosch, and no compensation was received for coverage.
Verdict Up Front
Who should buy it: Businesses that need genuinely detailed footage — offices, retail floors, warehouses, and school corridors — and want built-in AI-based analytics without licensing a separate software package. Furthermore, if you also need reliable night coverage without adding an external illuminator, the built-in IR makes this a sensible one-box solution.
Who should consider alternatives: If your budget is tight and 1080p or 5MP footage is genuinely sufficient, the FLEXIDOME 3100i line is considerably more affordable and still ships with IVA Pro Buildings. On the other hand, if you need outdoor-rated housing, look at the FLEXIDOME outdoor 5100i IR (NDE-5704-AL) instead, since the indoor version is not rated for exposure to the elements.
Bosch FLEXIDOME Indoor 5100i IR Specifications
| Specification | Detail |
|---|---|
| Model | FLEXIDOME indoor 5100i IR (NDV-5704-AL) |
| Resolution | 8 MP, 4K UHD (3840 × 2160) |
| Sensor | 1/2.8″ CMOS, 3864 (H) × 2192 (V) effective pixels |
| Lens | 3.2–10.5 mm P-iris, motorized zoom/focus, F1.6 |
| Field of View | Horizontal 105°–31°, Vertical 57°–18° |
| Low-Light Sensitivity | Color 0.046 lx / Mono 0.015 lx (IEC 62676-5, 1/25, F1.6) |
| Dynamic Range | Up to 120 dB WDR (103 dB WDR per IEC 62676-5) |
| Video Compression | H.265, H.264, M-JPEG |
| Frame Rate | 1–30 fps at 8 MP |
| Encoder Streams | 4 independent, 8 configurable profiles each |
| Video Analytics | IVA Pro Buildings (deep learning, pre-installed) |
| Optional Analytics | IVA Pro Perimeter, IVA Pro Traffic (licensed) |
| Audio | Two-way audio, line in/out |
| Power | PoE (IEEE 802.3af/802.3at Type 1, Class 3), 6.4 W typical / 7.7 W max |
| Networking | RJ45, 10/100 Base-T, Auto-MDIX |
| ONVIF Conformance | Profile S, Profile G, Profile T, Profile M |
| Storage | microSDHC up to 32 GB / microSDXC up to 2 TB |
| Data Security | TPM/Secure Element, AES-256/RSA-4096 crypto, PKI X.509 certificates, TLS 1.2/1.3 |
| Ingress/Impact Rating | IP54 / IK10 |
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Humidity Tolerance | 5% to 93% RH non-condensing |
| Dimensions | 148 × 122 mm (Ø × H) |
| Weight | Approx. 920 g |
| Compliance | NDAA compliant |
Pros and Cons
Pros
- 8 MP sensor delivers genuinely detailed 4K UHD footage for forensic review
- IVA Pro Buildings deep-learning analytics come pre-installed at no extra license cost
- Built-in infrared illuminator removes the need for a separate night-vision unit
- Four independent encoder streams give flexibility for live viewing versus recording
- Strong data security: hardware TPM, PKI certificates, TLS 1.2/1.3, signed firmware
- IK10 vandal resistance and a wide -20 °C to +50 °C operating range
- ONVIF Profile S/G/T/M conformance simplifies VMS integration
- Single-cable PoE installation
Cons
- Rated IP54, not IP66 — this is an indoor-only camera and cannot handle direct exposure to rain or heavy washdown
- Higher price point compared with entry-level Bosch dome cameras like the FLEXIDOME 3100i
- Advanced analytics like Perimeter and Traffic detection require separate paid licenses
- microSD storage tops out well below what some competing 4K cameras now support
- Ethernet is limited to 10/100 Base-T rather than Gigabit, which can matter on networks running many high-bitrate 4K streams
Who Should Buy the Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera?
Ideal Users
- IT and security managers overseeing offices, retail stores, schools, or warehouses that need clear, detail-rich indoor footage
- Installers who want built-in IR and analytics without stacking on multiple accessories
- Organizations that already run Bosch Video Management System or another ONVIF-compliant VMS
- Businesses that need to distinguish faces, license plates, or product details after the fact, not just detect motion
Not Recommended For
- Homeowners looking for a simple consumer camera — this is a commercial-grade device with a commercial-grade price
- Outdoor installations (the indoor variant lacks the IP66 rating of its outdoor sibling)
- Budget-constrained projects where 1080p or 5MP resolution would already meet requirements
Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera Design and Build Quality
The FLEXIDOME indoor 5100i IR follows Bosch’s familiar modular dome design: a click-and-rotate mounting mechanism that doesn’t require tools to attach the dome to its base, plus a mount plate designed for straightforward cable management. At 148 mm in diameter, 122 mm tall, and roughly 920 grams, it’s a substantial but not oversized fixture for a ceiling or wall mount.
Build quality is where Bosch’s commercial pedigree shows. For example, the housing carries an IK10 rating, meaning it’s built to withstand a defined level of impact — a relevant feature in schools, transit facilities, or any space where vandalism or accidental contact is a realistic risk. The IP54 ingress rating protects against dust and splashing water, which covers most indoor environments, including semi-exposed corridors, but it’s not designed for direct rain or pressure washing.
In addition, an integrated gyro/accelerometer sensor automatically corrects image orientation in 90-degree increments if the camera is mounted at an angle or upside down, and it supports manual rotation for applications like monitoring long hallways in portrait orientation without losing resolution.
Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera Image Quality Analysis
This is where the 8 MP variant earns its keep. The camera uses a 1/2.8-inch CMOS sensor producing 3864 × 2192 effective pixels, and it can output true 4K UHD video at 3840 × 2160 alongside a range of lower resolutions (6 MP, 4 MP, 1080p HD, and down to 432p SD) depending on bandwidth and storage needs.
Daytime Monitoring
At full resolution, the level of detail is noticeably sharper than Bosch’s 2 MP and 5 MP siblings in the same 5100i family — useful for reading signage, distinguishing faces across a wide retail floor, or capturing license plate detail through an entrance-facing window. The motorized 3.2–10.5 mm P-iris lens gives installers a horizontal field of view ranging from 105° down to 31°, so the same hardware can be configured for either wide-area coverage or a narrower, more zoomed-in view.
HDR and Dynamic Range
High Dynamic Range is rated up to 120 dB, with a measured 103 dB WDR figure per the IEC 62676-5 standard used for standardized camera comparisons. In practical terms, this helps the camera hold detail in both a bright window and a shadowed corner of the same frame — a common challenge in lobbies and entrances where backlighting from daylight would otherwise wash out faces.
Low-Light and Infrared Performance
Bosch’s published low-light sensitivity figures for the 8 MP sensor, measured under IEC 62676-5 conditions (1/25 shutter, F1.6), are 0.046 lux in color and 0.015 lux in monochrome. That’s respectable starlight-class performance, though slightly less sensitive than the lower-resolution 2 MP and 5 MP variants in the same family, which is a normal trade-off of packing more pixels onto a similarly sized sensor.
Where the “IR” designation matters most is in full darkness. Meanwhile, the camera includes a built-in infrared illuminator, and Bosch-sourced retailer documentation for this specific 8 MP IR variant lists an effective infrared range of up to 40 meters, giving continuous monochrome coverage even with zero ambient light. That’s a meaningful convenience over the standard (non-IR) FLEXIDOME 5100i, which relies entirely on ambient or supplemental lighting after dark.

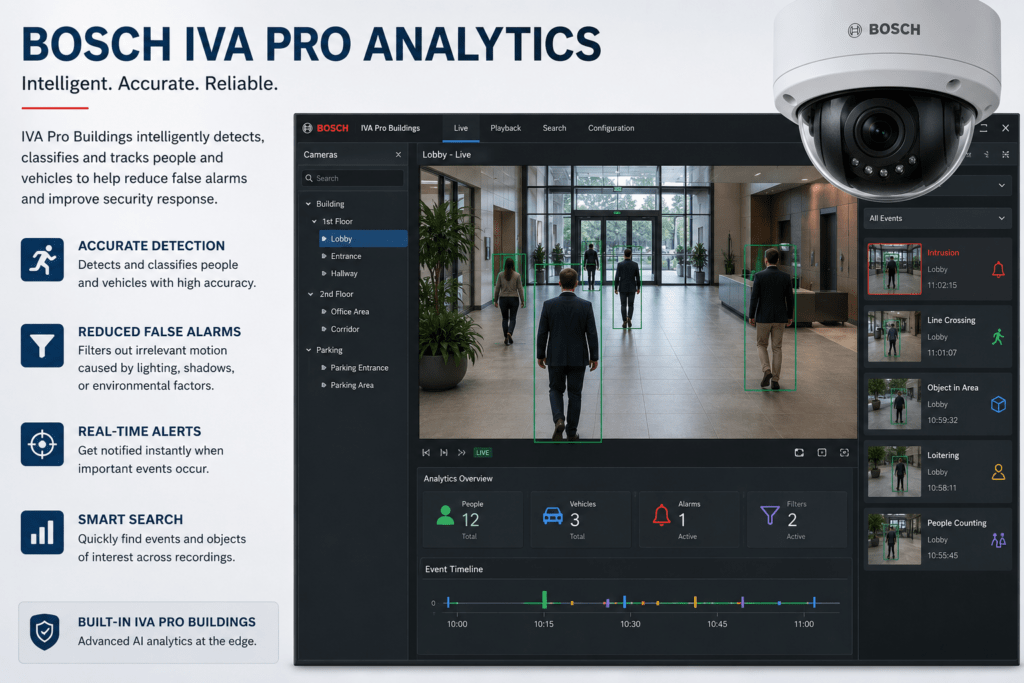

Bosch FLEXIDOME Indoor 5100i IR Features
This is arguably the camera’s strongest differentiator against budget alternatives. IVA Pro Buildings comes pre-installed rather than sold separately, and it’s built on deep-learning-based detection rather than simple pixel-change motion detection.
What It Detects
Out of the box, the camera classifies persons and vehicles by default. Moreover, with the optional IVA Pro Pack license, object classification extends to bicycles, motorcycles, trucks, and buses — useful for facilities with mixed vehicle and pedestrian traffic, like loading docks or campus entrances.
Alarm Rules
The analytics engine supports a wide combination of configurable alarm rules, including:
- Any object detected
- Object in field / entering or leaving a field
- Line crossing
- Loitering
- Follow route
- Objects stopping or starting to move
- Counting and occupancy tracking
- Condition change detection
- Similarity search (useful for forensic review after an incident)
Object filters allow further refinement by duration, size, aspect ratio, direction, and color, which helps reduce false alarms triggered by rain, moving trees, shadows, or insects near the lens — a common frustration with older-generation analytics systems.
Optional Add-Ons and Audio Performance
For more specialized deployments, Bosch offers IVA Pro Perimeter (licensed separately) for mission-critical perimeter security, and IVA Pro Traffic for deep-neural-network-based traffic monitoring and automatic incident detection. These aren’t included by default but can be added without swapping hardware.
Additionally, the camera supports two-way audio through a dedicated line input and output, allowing an operator to listen in and communicate through an external speaker and microphone setup — useful for reception desks, loading docks, or any scenario where a remote operator needs to address a visitor directly. Audio streaming standards include G.711, L16, and AAC-LC, and the system also supports audio detection, which can be configured to trigger alarms independently of the visual analytics.
Bosch FLEXIDOME Indoor 5100i IR Installation

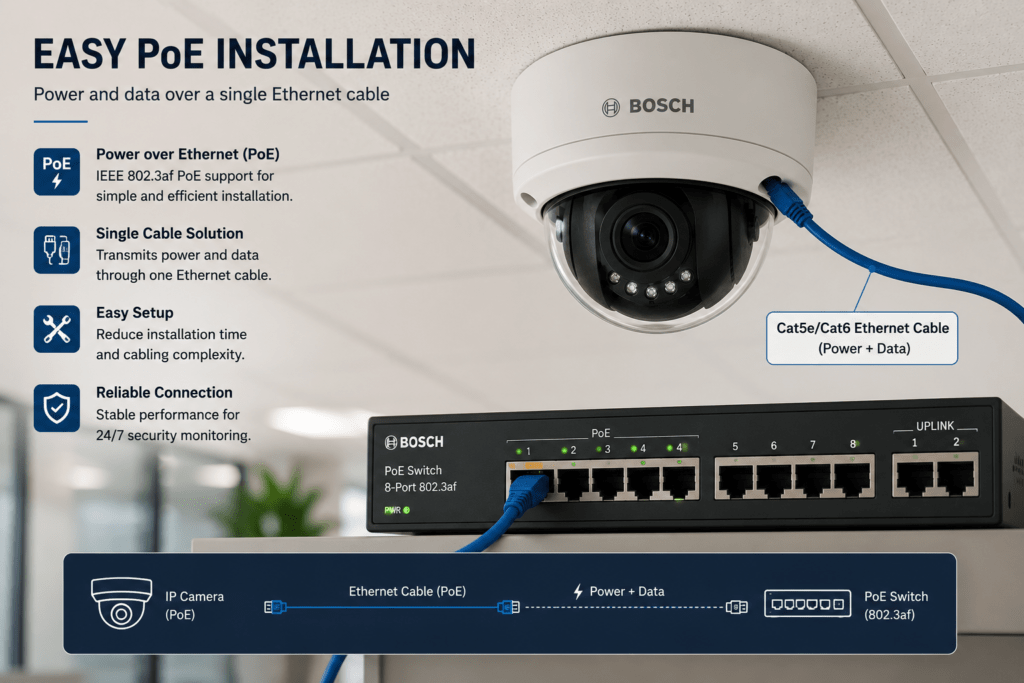

PoE Support and Installation
Power comes via Power-over-Ethernet, conforming to IEEE 802.3af/802.3at Type 1, Class 3. Typical power draw at 8 MP resolution is 6.4 W, with a maximum of 7.7 W — modest enough that most standard PoE switches or midspan injectors handle it without issue. Single-cable installation means no separate power run is required, which meaningfully cuts labor time on commercial installs.
ONVIF Compatibility and Remote Management
The camera conforms to ONVIF Profile S, Profile G, Profile T, and Profile M, with Media Service 2 support for H.265 configuration under Profile T. This level of ONVIF conformance is one of the more complete implementations in Bosch’s current lineup and generally translates to smoother third-party VMS integration.
Bosch Remote Portal, a cloud-based management service, allows administrators to complete initial configuration, push firmware updates, manage certificates, and monitor device health across multiple connected cameras remotely — a useful feature for organizations managing cameras across several sites.
Cybersecurity Features
Data security is a genuine strength here. The camera includes a hardware Secure Element providing Trusted Platform Module functionality, three-level password protection, and support for Public Key Infrastructure with pre-installed Bosch origin certificates. Encryption support spans TLS 1.2 and TLS 1.3, AES-128/256, and local storage encryption via XTS-AES. Firmware updates require authenticated secure uploads, and the device supports signed firmware with secure boot. It also carries IEC 62443 Industrial Cyber Security Capability recognition and is listed under the UL CAP Cybersecurity Assurance Program.
A Practical Limitation
However, the Ethernet interface is 10/100 Base-T rather than Gigabit. For a single camera, this isn’t a bottleneck, but network planners running many 4K streams across a shared switch should factor total bandwidth carefully, since aggregate throughput across dozens of cameras can add up quickly on a 100 Mbps-per-port topology.
Software and Integration
The FLEXIDOME 5100i IR integrates with Bosch Video Management System (BVMS) as well as any ONVIF-compliant third-party VMS. Configuration is handled through a web browser interface protected by HTTPS, and initial commissioning can also be done wirelessly using the Bosch Project Assistant mobile app together with a USB-C wireless dongle (sold separately) — a genuinely useful feature for installers working in spaces without immediate network access.
Firmware updates can be pushed individually or fleet-wide through Bosch Remote Portal, and the system supports scheduled or event-based recording profiles, including continuous recording, ring recording, and alarm/event/schedule-based recording to the onboard microSD card.
Real-World Applications and Deployment Scenarios

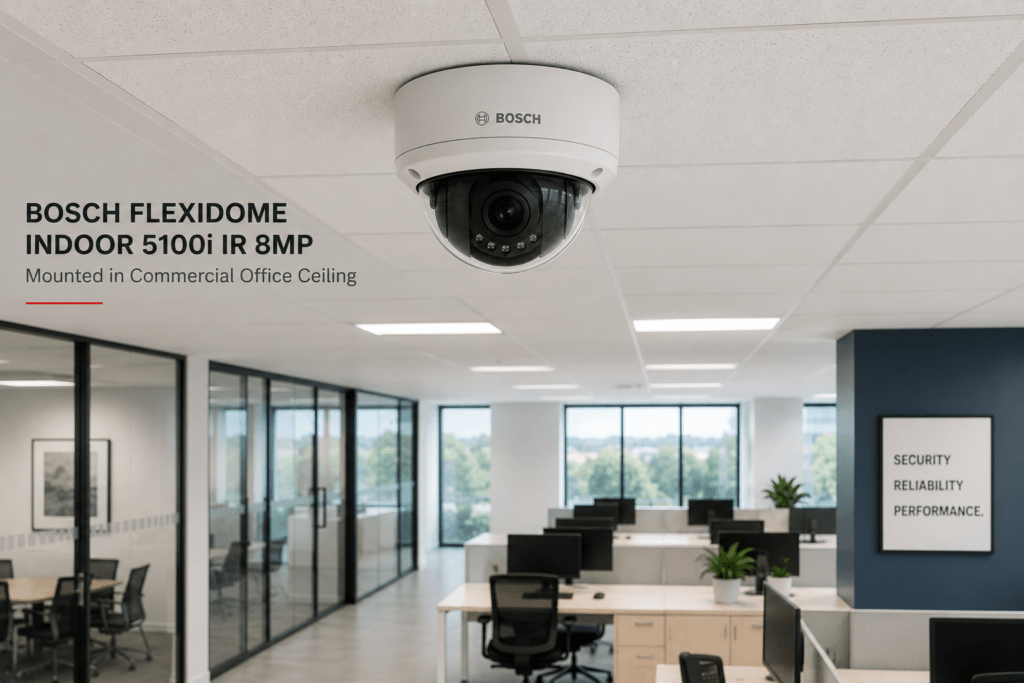

Offices: The wide field of view and HDR handling make it well suited for lobbies and open floor plans with mixed lighting from windows and overhead fixtures.
Retail stores: IVA Pro’s person and object detection, combined with 8 MP detail, helps with both loss prevention monitoring and general foot-traffic analysis near entrances and checkout areas.
Warehouses: The wide operating temperature range (-20 °C to +50 °C) and IK10 rating suit unconditioned storage spaces, loading zones, and areas with forklift or pallet traffic where impact resistance matters.
Schools: Vandal resistance and loitering/line-crossing alarm rules are practical for hallway and entrance monitoring.
Commercial buildings and indoor entrances: The built-in IR illuminator is particularly useful for stairwells, back-of-house corridors, and any area that goes fully dark after hours.

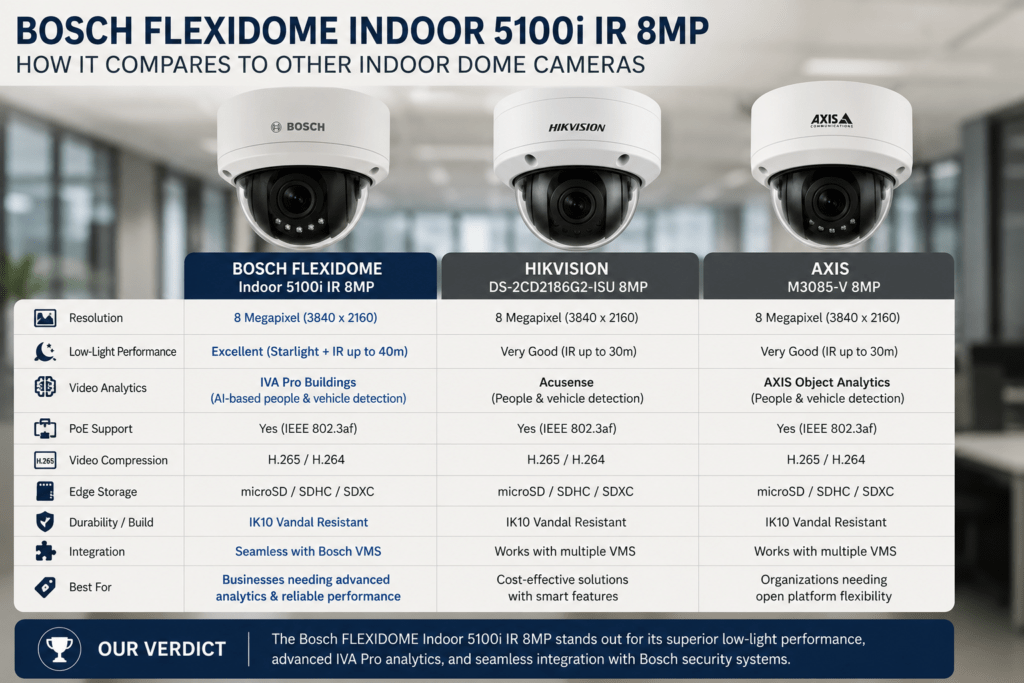

Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera Comparison
| Camera | Resolution | Low-Light Performance | Video Analytics | PoE Support | Best Use Case |
|---|---|---|---|---|---|
| FLEXIDOME indoor 5100i IR (8MP) | 8 MP / 4K UHD | 0.046 lx color / 0.015 lx mono, plus built-in IR to 40 m | IVA Pro Buildings (pre-installed) | Yes, 802.3af/at | Detail-critical indoor monitoring with night coverage |
| FLEXIDOME 3100i (5MP) | Up to 5 MP / QHD | Starlight-class sensor (model dependent) | IVA Pro Buildings (pre-installed) | Yes | Entry-level indoor surveillance on a tighter budget |
| FLEXIDOME outdoor 5100i IR (8MP, NDE-5704-AL) | 8 MP / 4K UHD | Same sensor family as indoor 5100i IR | IVA Pro Buildings (pre-installed) | Yes | Same detail level as the indoor model, rated for outdoor exposure |
| DINION IP Starlight 7000 (1080p box) | 1080p (60 fps) | Starlight-class low-light sensor | Intelligent Video Analytics | Yes, hybrid IP + analog output | Migrating an analog CCTV system to IP without replacing all infrastructure |
| Comparable Axis fixed dome | Varies by model, typically up to 4K | Varies by sensor generation | Axis-native analytics (varies) | Yes | Similar commercial deployments; worth comparing lens options and licensing costs directly |
Bosch FLEXIDOME vs DINION
These two product lines solve different problems. The FLEXIDOME 5100i IR is a fixed dome built for discreet, ceiling- or wall-mounted indoor coverage with an integrated lens and IR illuminator baked into a single housing. Conversely, the DINION IP Starlight 7000 is a box-style camera that ships without a lens (buyers select one separately), supports up to 60 fps at 1080p, and — notably — offers hybrid output, sending both IP and analog video simultaneously via an SMB connector. That hybrid capability makes the DINION a better fit for organizations migrating an existing analog CCTV system to IP infrastructure gradually, rather than replacing every camera and cable run at once. Therefore, if your priority is a single self-contained dome with higher resolution and modern deep-learning analytics, the FLEXIDOME 5100i IR is the more straightforward choice.
Alternatives Worth Considering
- FLEXIDOME 3100i (2MP or 5MP): A genuinely solid budget-friendly option that still includes IVA Pro Buildings analytics, suitable for smaller indoor spaces where 8 MP detail isn’t necessary.
- FLEXIDOME outdoor 5100i IR (NDE-5704-AL): Nearly identical core specifications to the indoor model reviewed here, but built for outdoor exposure with a higher ingress protection rating.
- A comparable Axis fixed dome: Worth benchmarking directly against, particularly on total cost of ownership if your organization already licenses Axis-native analytics or VMS software.
Frequently Asked Questions
1.Is the Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera worth buying in 2026?
The Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera is a strong option for organizations that need genuinely detailed indoor footage., built-in night vision, and pre-installed deep-learning analytics without a separate licensing purchase, it remains a strong option in 2026. Its combination of ONVIF conformance, hardware-based data security, and PoE simplicity holds up well against current commercial dome cameras, though buyers focused purely on budget may find the FLEXIDOME 3100i line more cost-effective.
2. What is the difference between the Bosch FLEXIDOME and DINION camera lines?
The FLEXIDOME line consists mainly of dome-style cameras with integrated lenses, designed for discreet indoor or outdoor mounting. The DINION line includes box-style cameras that require a separately selected lens and, in models like the Starlight 7000, can output both IP and analog video simultaneously for hybrid CCTV-to-IP migrations.
3. Does the FLEXIDOME indoor 5100i IR support Power over Ethernet?
Yes. It supports PoE conforming to IEEE 802.3af/802.3at Type 1, Class 3, with a typical power draw of 6.4 W and a maximum of 7.7 W at 8 MP resolution.
4. What is the infrared range of this camera?
Based on Bosch’s published specifications for this specific 8 MP IR variant, the built-in infrared illuminator provides effective night vision coverage up to approximately 40 meters.
5. Is the FLEXIDOME indoor 5100i IR suitable for outdoor installation?
No. This model carries an IP54 ingress rating, which is designed for indoor environments and light dust or splash exposure. For outdoor deployments, Bosch offers the FLEXIDOME outdoor 5100i IR (NDE-5704-AL), which carries a higher ingress protection rating suited to direct weather exposure.
6. What video analytics does the camera include by default?
It ships with IVA Pro Buildings pre-installed, which uses deep-learning-based detection and tracking of persons and vehicles, plus a broad set of configurable alarm rules such as line crossing, loitering, and occupancy counting. More specialized analytics — IVA Pro Perimeter and IVA Pro Traffic — are available as separate licenses.
7. How does the 8MP resolution compare with lower-resolution models in the same 5100i family?
The 8 MP variant produces noticeably more image detail, useful for facial recognition-adjacent tasks like forensic review or reading license plates, but it trades off slightly in raw low-light sensitivity compared to the 2 MP and 5 MP models in the same platform, which is typical of higher-resolution sensors.
8. Does the camera support local storage, or does it require a separate recorder?
It includes a memory card slot supporting microSDHC cards up to 32 GB and microSDXC cards up to 2 TB, plus 5-second pre-alarm recording in RAM. It can operate with local edge storage alone or alongside a networked VMS and recorder for centralized management.
Final Verdict on the Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera
| Category | Final Rating |
|---|---|
| Image Quality | 9/10 |
| Low-Light Performance | 8/10 |
| Build Quality | 8/10 |
| Analytics Features | 9/10 |
| Ease of Installation | 8/10 |
| Network Features | 9/10 |
| Value for Money | 7/10 |
| Overall Rating | 8.3/10 |
The Bosch FLEXIDOME Indoor 5100i IR 8MP Network Dome Camera remains a genuinely competitive option against newer surveillance cameras heading into 2026., largely because of what’s included rather than sold separately: deep-learning analytics out of the box, hardware-level cybersecurity, and a built-in IR illuminator in a single vandal-resistant housing. Its main limitations — a 10/100 Base-T Ethernet interface, IP54 rather than IP66 ingress protection, and a price point above Bosch’s entry-level dome cameras — are worth weighing against your specific deployment, but for indoor environments where image detail and reliable analytics genuinely matter, it holds up well against the current field of 4K network dome cameras.
Bosch FLEXIDOME Indoor 5100i IR Price
The Bosch FLEXIDOME Indoor 5100i IR is primarily sold through authorized commercial security distributors, so pricing varies depending on the region, reseller, and project size. Enterprise buyers should request a quote when purchasing multiple cameras.
Ready to Buy? Check Current Pricing and Availability
Pricing on commercial security cameras like the FLEXIDOME indoor 5100i IR often varies by authorized reseller, and many distributors offer business bundles, installation packages, or volume discounts for multi-camera deployments. Before purchasing, it’s worth checking current pricing, confirming stock availability through an authorized Bosch reseller, and asking about any active discounts or installation packages, since commercial security purchases frequently qualify for business-specific offers not listed on standard retail pages.
